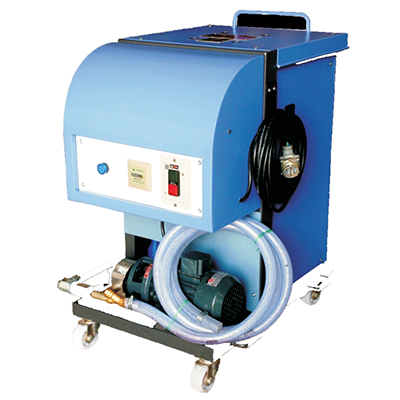

Oil Cleaning Machine
Technical Specification
- Pump 7CC Gear type 10 lpm
- Liquid Compatibility Hydraulic Oil (46-48)
- Input Nozzle 3/4″
- Output Nozzle 3/4″
- Electric Motor 0.37kw (0.5 HP)
- Cable Size 1.5 sqm X 5 core X 10 mtr.
- Castors 3″ Nylon
- Filter 50, 25, 10, 6 μ
Models
| PEOCM-4A | 50W+25W+10P+6P |
| PEOCM-4B | 50W+25W+10GF+6GF |
| PEOCM-4C | 50W+25W+10W+6W |
Why Filtration is Required

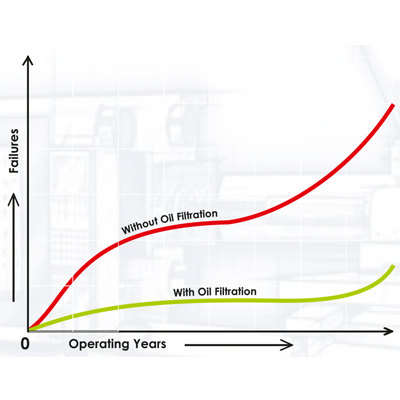

In order to operate hydraulic systems without failure, hydraulic systems are equipped with precise high-tech components.

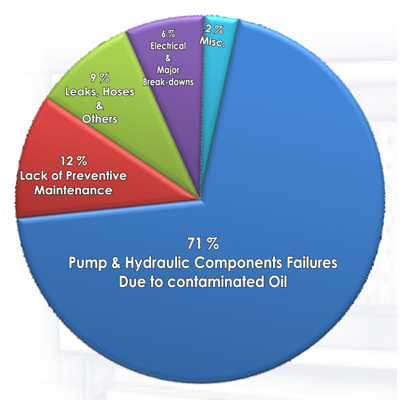

Sludge,resin & dirt in the oil cause friction, wear and malfunction of the hydraulic system. More than 80% of hydraulic failures are caused by impurities in the oil.
The Mechanically oil cleaner remove sludge & dirt particles from hydraulic oil and other mineral oil which is as clean as with NAS value 8. Malfunction of hydraulic oil is extended. The cleaned hydraulic oil is much cleaner than new oil.
Features and Benefits
- Fast return of investment
- Precise operation of your hydraulic system
- Improved process reliability
- Less production Cost
- Improved availability of your machine
- Less cost for maintenance, repairing and oil change
- Up to 70% less downtime
- up to 95% less consumption of hydraulic oil
